planistar’s mission is enabling our customers’ inspection, object illumination and vision applications by providing individual, innovative and reliable light solutions.
Founded in 1983 we are striving for driving innovation in lighting technology and developing high-quality lighting products.
Since then the impressive experience of every single light panel based on two of our most important inventions, edge lighting and mirror dot grid ensuring highest uniformity of the illuminated area, has contributed to our recognition as a specialized light manufacture.
Design awards and further patents strengthened our position as an innovative leader for high-quality light solutions. Still raising the bar we presented at EPHJ in 2019 our latest innovation in light: FOCUSOR.
NO SHADOWS.
JUST LIGHT.
ALLOVER.
FOCUSOR brings to you the shadowfree and non-dazzle illuminated workplace.
A special lens system directs all rays of a large light source into a focused area. The light illuminates the object from a 360° perspective and thereby reveals so far hidden areas or finest surface structures.
WHY FOCUSOR?
Every industry or application requires aligned work environments and conditions. Each workplace or illumination task is unique. We created a vast range of options enabling you to configure your own FOCUSOR providing the most suitable light experience for your workplace – no matter if you work in high precision like watch making, jewelry, medical or exhibiting like galleries and museums or any other industry or application. All you need from now on is FOCUSOR.
INDIVIDUAL POSITIONS
One or multiple illuminated areas – FOCUSOR guides the light exactly to the place
where it is required.
INDIVIDUAL SHAPES
Adjusted to your objects – individual shapes for illuminated areas.
INDIVIDUAL COLORS

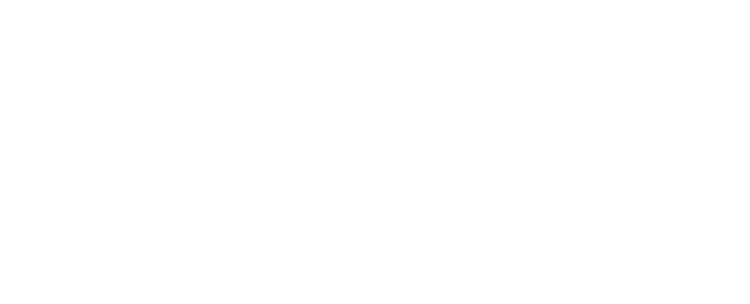

FOCUSOR provides a huge range of light colors – from diverse Norm light standards (D30 – D65) to any light color with adjustable brightness.
YOUR CHALLENGE.
YOUR LIGHT.
NO COMPROMISES.
HIGHEST QUALITY
Market leading LED technology as light source enabling spectacular light quality at CRi ≥95.
NO SHADOWS.
JUST LIGHT.
ALLOVER.
FOCUSOR brings to you the shadowfree and non-dazzle illuminated workplace.
A special lens system directs all rays of a large light source into a focused area. The light illuminates the object from a 360° perspective and thereby reveals so far hidden areas or finest surface structures.
WHY FOCUSOR?
Every industry or application requires aligned work environments and conditions. Each workplace or illumination task is unique.
We created a vast range of options enabling you to configure your own FOCUSOR providing the most suitable light experience for your workplace – no matter if you work in high precision like watch making, jewelry, medical or exhibiting like galleries and museums or any other industry or application. All you need from now on is FOCUSOR.
INDIVIDUAL POSITIONS
One or multiple illuminated areas – FOCUSOR guides the light exactly to the place where it is required.
INDIVIDUAL SHAPES
Adjusted to your objects – individual shapes for illuminated areas.
HIGHEST
QUALITY
Market leading LED technology as light source enabling spectacular light quality at CRi ≥95.
INDIVIDUAL COLORS
FOCUSOR provides a huge range of light colors – from diverse Norm light standards (D30 – D65) to any light color with adjustable brightness.
YOUR CHALLENGE. YOUR LIGHT.
NO COMPROMISES.
SOME MORE
DETAILS
We created an overview of our two product series. Get an outline quickly by expanding the respective title for more key information or download detailed documentation.
SOME MORE
DETAILS
We created an overview of our two product series. Get an outline quickly by expanding the respective title for more key information or download detailed documentation.
FOCUSOR
Model
ideal application
Illuminated area
shape
further options
dimensions (max.)
camera recess
Light parameters
light colors
light quality CRi
brightness
dimmable
optional light colors
two-in-one
adjustable color
temperature
Protection class
Overall size
Case
material
treatment
standard colors
optional case colors
Mounting
Order code
Price
FOCUSOR S
Visual Inspection
any shape
multiple spots
40 x 60mm (rectangular),
60mm (circled),
50 x 50mm (squared)
optional
D30 (3.000K) – D65 (6.500K)
≥95
6.500 – 8.200lx (200mm)
yes
red, blue, green, amber
or on request
yes
yes
IP40
250 x 290 x 30mm
Aluminium
powder coated
white, light grey
any RAL color
4 x M4
FOCUSOR-S
1.250 EUR
FOCUSOR M
Object Illumination
any shape
multiple spots
80 x 120mm (rectangular),
120mm (circled),
100 x 100mm (squared)
optional
D30 (3.000K) – D65 (6.500K)
≥95
6.500 – 8.200lx (200mm)
yes
red, blue, green, amber
or on request
yes
yes
IP40
580 x 592 x 30mm
Aluminium
powder coated
white, light grey
any RAL color
4 x M6
FOCUSOR-M
3.680 EUR
SLED-2-FOCUSOR
Model
ideal application
Illuminated area
shape
further options
dimensions
camera recess
Light parameters
light colors
light quality CRi
brightness
optional light colors
two-in-one option
adjustable color
temperature option
Protection class
Overall size
Case
material
treatment
standard colors
optional case colors
Mounting
Order code
Price
24-24
Machine Vision
squared
–
50 x 50mm
yes
-18w (white)
Ra85
15.000lx (200mm)
on request
–
–
IP40
250 x 230 x 30mm
Aluminium
powder coated, matt
black
–
4 x M4
24-24-Sled-2-VF-18w-0
980 EUR
48-48
Machine Vision
squared
–
100 x 100mm
yes
-19w (white)
Ra85
15.000lx (500mm)
on request
.
–
–
IP40
580 x 595 x 30mm
Aluminium
powder coated, matt
black
–
4 x M6
48-48-Sled-2-VF-19w-0
2.950 EUR
FOCUSOR IS MADE FOR
VISUAL INSPECTION, DEMANDING WORKPLACES & EXHIBITING

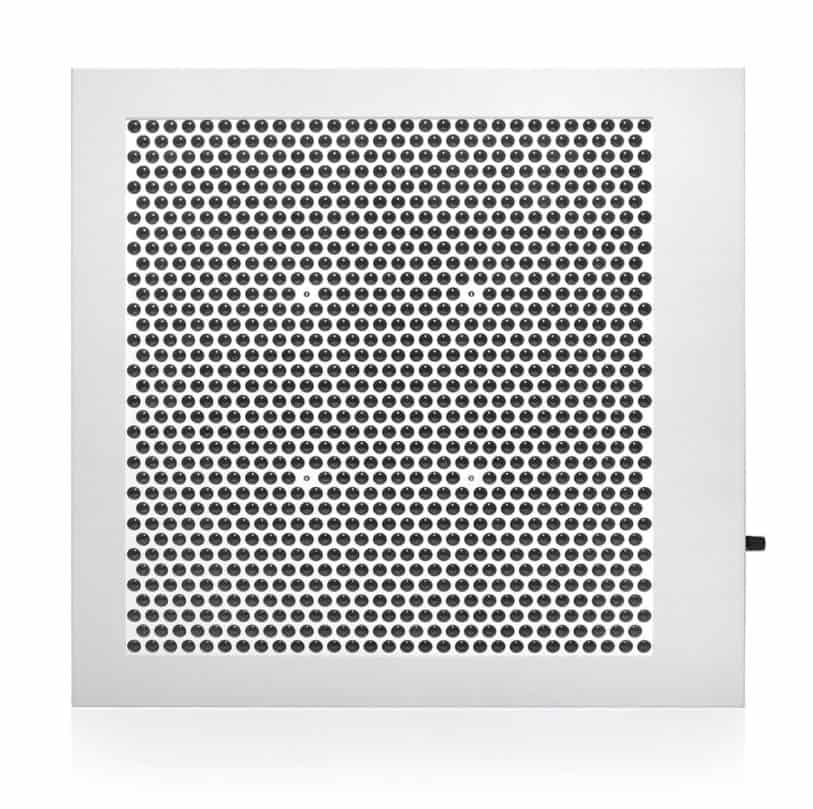

FOCUSOR
Model FOCUSOR S
ideal application Visual Inspection
Illuminated area
shape any shape
further options multiple spots
dimensions 40 x 60mm (rectangular)
60mm (circled) 50 x 50mm (squared)
camera recess optional
Light parameters
light colors -D30 (3.000K) – D65 (6.500K)
light quality CRi ≥95
brightness 6.500 – 8.200lx (200mm)
dimmable yes
optional light colors red, blue, green,
amber or on request
two-in-one option yes
adjustable color temperature option yes
Protection class IP40
Overall size 250x 290 x 30mm
Case
material Aluminium
treatment powder coated
standard colors white, light grey
optional case color any RAL color
Mounting 4 x M4
Order code FOCUSOR-S
Price 1.250 EUR
Downloads
+ Datasheet
+ Technical Drawing PDF
+ 3D-Model STP
Model FOCUSOR M
ideal application Object Illumination
Illuminated area
shape any shape
further options multiple spots
dimensions 80 x 120mm (rectangular)
120mm (circled) 100 x 100mm (squared)
camera recess optional
Light parameters
light colors -D30 (3.000K) – D65 (6.500K)
light quality CRi ≥95
brightness 6.500 – 8.200lx (200mm)
dimmable yes
optional light colors red, blue, green,
amber or on request
two-in-one option yes
adjustable color temperature option yes
Protection class IP40
Overall size 580x 592 x 30mm
Case
material Aluminium
treatment powder coated
standard colors white, light grey
optional case colors any RAL color
Mounting 4 x M6
Order code FOCUSOR-M
Price 3.680 EUR
Downloads
+ Datasheet
+ Technical Drawing PDF
+ 3D-Model STP

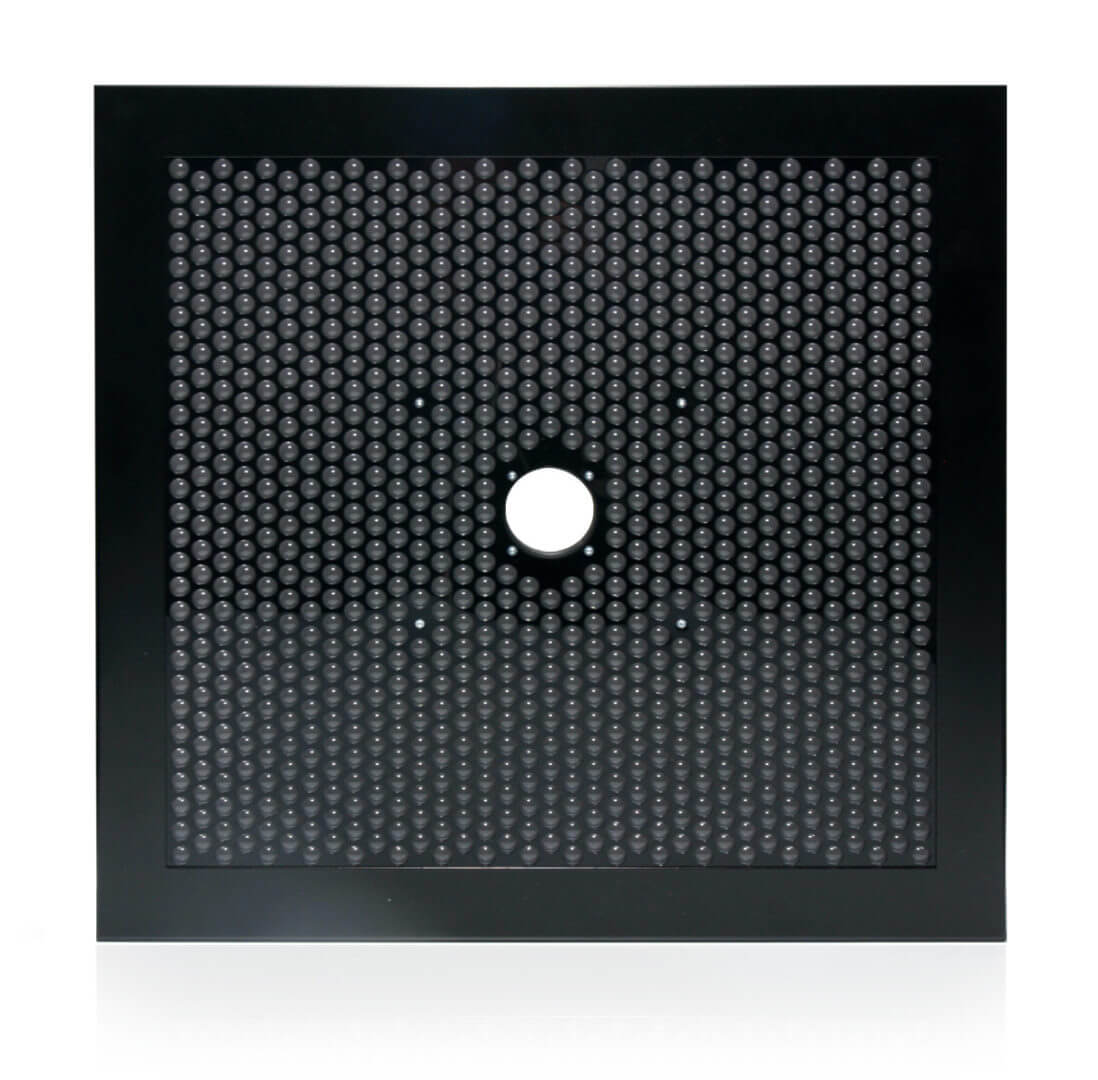

SLED-2-FOCUSOR
Model 24-24
ideal application Machine vision
Illuminated area
shape squared
further options –
dimensions 50 x 50mm
camera opening yes
Light parameters
light colors -18w (white)
light quality CRi Ra85
brightness 15.000lx (200mm)
optional light colors on request
two-in-one option –
adjustable color temperature option –
Protection class IP40
Overall size 250x 230 x 30mm
Case
material Aluminium
treatment powder coated, matt
standard colors black
further options –
Mounting 4 x M4
Order code 24-24-Sled-2-VF-18w-0
Price 980 EUR
Downloads
+ Datasheet
+ Technical Drawing PDF
+ 3D-Model STP
Model 48-48
ideal application Machine vision
Illuminated area
shape squared
further options –
dimensions 100 x 100mm
camera recess yes
Light parameters
light colors -19w (white)
light quality CRi Ra85
brightness 15.000lx (500mm)
optional light colors on request
two-in-one option –
adjustable color temperature option –
Protection class IP40
Overall size 580 x 595 x 30mm
Case
material Aluminium
treatment powder powder coated, matt
standard colors black
further options –
Mounting 4 x M6
Order code 48-48-Sled-2-VF-19w-0
Price 2.950 EUR
Downloads
+ Datasheet
+ Technical Drawing PDF
+ 3D-Model STP
FOCUSOR IS MADE FOR
VISUAL INSPECTION, DEMANDING WORKPLACES & EXHIBITING
